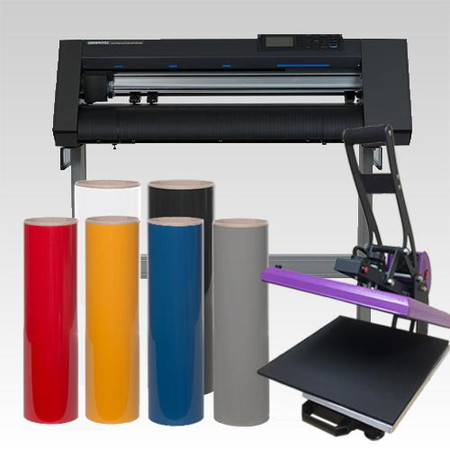

| Configuration |
Grit roller with digital servo drive system |
| Maximum cutting area (W x L) |
24" x 164' |
| Cutting area of guaranteed accuracy(W x L) |
23" x 79" |
| Mountable media width |
2"
28" |
| Number of push rollers |
2 rollers |
| Maximum cutting speed |
36"/s, in all directions |
| Maximum acceleration |
69.6' at 45º direction |
| Maximum cutting force |
4.41 N (450 gf) in 38 steps |
| Minimum character size |
Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media) |
| Programmable resolution |
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm |
| Repeat-ability |
Max. 0.1 mm in plot up to 2 m (*1) |
| Mountable number of tools |
1 tool |
| Blade type |
Supersteel |
| Pen type |
Oil-based ballpoint, Water-based fiber-tip pen |
| Media type |
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) cutting Graphtec Rhinestone Stencil material GRS1510-m |
| Interface |
USB 2.0 (Full Speed), Ethernet
10BASE-T/100BASE-TX |
| Buffer memory |
2 MB |
| Command sets |
GP-GL / HP-GL™ (Set by command or auto-detect) |
| Display |
Graphic type LCD with back-light (240dots x 128dots), supports 10 languages |
| Registration mark sensing system |
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation,
4-points axis alignment, Auto mark detect |
| Alignment accuracy |
Maximum 0.3 mm with printed image (when reading registration marks specified by this machine) |
| Power source |
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz |
| Power consumption |
120 VA |
| Operating environment |
10 to 35 ºC, 35 to 75 % R.H. (non-condensing) |
| Guaranteed accuracy environment |
16 to 32 ºC, 35 to 70 % R.H. (non-condensing) |
External dimensions (W x D x H)
(with Basket) |
Approx. 39.6" x 23" x 43" |
Weight (Approx.)
(with Basket) |
51 lbs (13kg)
55.6 lbs (25.2 kg)
|
| Compatible OS (*2) |
Windows 10 / 8.1 / 7
Mac OSX 10.6 - 10.11 - 10.12 - 10.15 |
| Included software |
Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac),
Windows driver |
| Compatibility Standards Safety |
PSE, UL/cUL, CE mark |
| Compatibility Standards EMC |
VCCI Class A, FCC Class A, CE mark |
