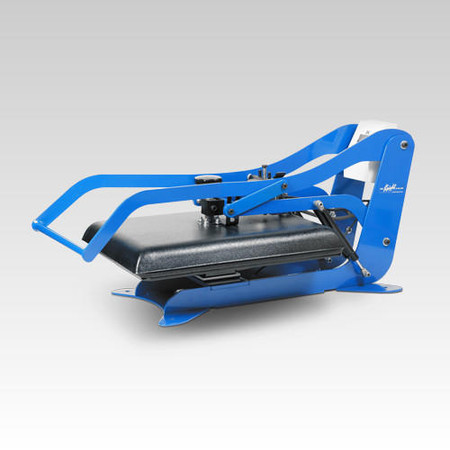

HIX Auto Open Heat Press 16x20 S-650

Write a Review
Sku: HIXS650

Expected lead time: 5-6 business weeks

  • Will ship 5-6 weeks after order is placed, due to high demand
  • Splitter Stand included ($95 value)
  • Automatic Presses are the pros' choice for high volume production
  • HIX Automatic presses are top of the line
  • These presses are the most user-friendly in the S-650P business and a must in any shop where production, reliability, and quality are top priorities
  • NOTE: Heat presses will be shipped separately when ordered in conjunction with multiple items.  This item is a Dropship from the manufacturer via UPS Ground only. (2-5 days)
  • For equipment returns, please see our Returns Policy Page
  • Accessories

Auto Open Features of HIXS650:

  • Heavy duty, even heating 16"x20" platen
  • Digital timer (adjustable up to 99 minutes 59 seconds)
  • Digital pressure readout (0-9 for consistent transfer pressure)
  • Full adjustable pressure control
  • Calibrated digital temperature control (adjustable up to 450°F (232°C) and displays the current temperature and time)
  • Gas shock lift system
  • No air required
  • Auto-release function (press automatically opens at the end of the transfer cycle due to a proprietary mechanical latch system instead of unreliable magnetic components or air assistance)
  • Quick release mechanism allows manual override of the auto-release function
  • Progressive and smooth opening feature
  • Floating lower platen
  • Elevated arm for tighter pressure
  • Large opening and underside clearance for easy shirt loading
  • HIXS650 applies transfers to items up to 1/2" thick
  • CE, ETL certified to UL & CSA standards
  • Lifetime warranty on heating element

Optional Features:

  • Interchangeable lower platen and specialty sizes for sleeves and pockets



  • 16"x20" Platen (40.6x50.8 cm)
  • Splitter Stand included ($95 value)
  • Box Size 33"x21"x18" (84x53x46 cm)
  • Shipping Weight 95 lbs. (44 kg)
  • Amps/Watts (120 Volt) 14.5 / 1750


  • DROP SHIP product; this material will be sent via ground shipping from our vendor and will ship separately from your order.

Additional Instructions

Heat presses do not need application instructions.


Happy Pressing!

  • This product has options that are DROPSHIP ONLY and, if selected, this material will be sent via ground shipping from the manufacturer and will ship separately from your order.
